Franklin Medical Center Roof Replacement

Written By Ray George

Ohio Department of Rehabilitation and Correction (ODRC)

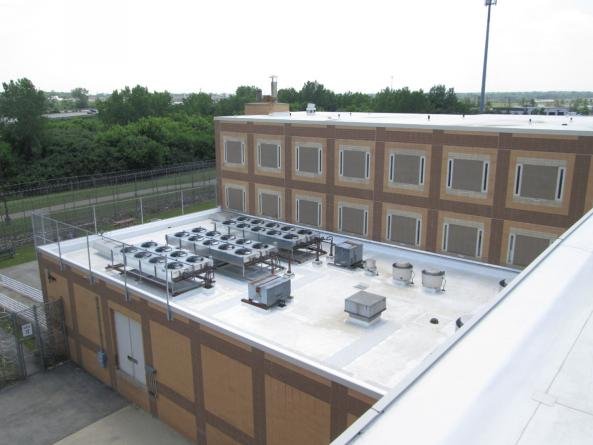

The project involved the roof replacement at Buildings A, B, C, D, and E. Ballasted single-ply and tapered insulation were removed down tot he deck and a (25) year warranty adhered fleeced back T.P.O. roof system and tapered insulation were installed. Perimeter fencing that was on the roof of Building A was moved so it is attached to the face of the buildling. Buildings remained in operation during construction. The following additional items were included:

  • New metal fascia provided.

  • New lightning protection system was provided.

  • Roof drains were snaked 60’.

  • At some locations at masonry walls, brick was removed, new thru-wall flashing was installed, and new brick installed.

  • New reglet and metal counterflashings were provided to terminate membrane

Ray George
